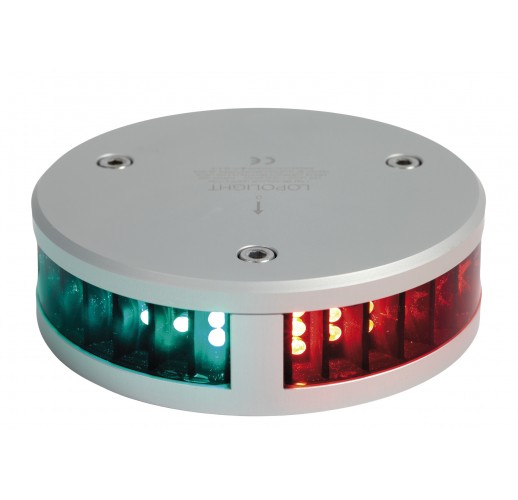

• LED (Light Emitting Diode) navigation light.

• Unique and precise definition of light angles.

• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.

• Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.

• Waterproof to IP 68+ (submersible).

• Lifetime over 50.000 hours or 4.200 nights.

• Low power consumption – 70 to 90% less than traditional navigation lights.

• Full brightness with input voltages ranging from 10 to 32 Volts.

• All Lopolights have been tested several times during production, a total of more than 24 hours.

• Easy to install, adaptor and screws included (when applicable).

Approvals

Worldwide typeapproval

Wheelmark/M.E.D. QQ-MED-15/09-01

MCA (UK), USCG (USA)

Included in package

1 Navigation light, precabled with 0,7 meter shielded marine grade cable

1 Mounting block with pre-threaded holes

3 Mounting screws (4 * 30 mm)

Installation guide

Measurements

Light: Ø: 92,5 mm (3,64 in) – H: 28,0 mm (1,1 in) – W: 310 gram (11 oz)

Mounting block: Ø: 92,5 mm (3,64 in) – H: 24,0 mm (1,14 in) – W: 148 gram (5 oz)

Materials

Anodised aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

Supply voltage

10-32 VDC

Power consumption

1,5 Watt

Current @ 12 VDC: 0,18 A: Current @ 24 VDC: 0,09 A

Light colors

Green – Red – White

Intensity

Green & Red sectors: >1,2 cd

White sector: >5,4 cd

Visibility (@K=0.8)

Green & Red sectors: 1nm

White sector: 2 nm

Number of LED's

58

Suggested feed cables

12 VDC: 2 x 0,25 mm2 (maximum outer diameter 7mm)

24 VDC: 2 x 0,25 mm2 (maximum outer diameter 7mm)

Expected life

50.000

Ship size

12 meter (39,4 feet)

Mounting

Horizontal
